Aviación de caza soviética (IV)


Yakovlev Yak-1, 3, 7 y 9



Producido como respuesta a un requisito soviético de 1938 para un monoplaza de caza, el Yak-1 de ala baja tenía una estructura mixta de madera y metal. Entró en servicio en gran escala tras la invasión alemana, fue sometido a mejoras que llevaron al Yak-1M como solución temporal.

Remotorizado y redesignado Yak-3 demostró mejores cualidades que el Fw 190 A o el Bf 109 G a cotas inferiores a los 5.000 metros. Era un caza robusto, pequeño y manejable. El prototipo del Yak-3 voló por primera vez a finales de 1943. Los primeros en entrar en servicio lo hicieorn en julio de 1944; en efecto, llegó bastante tarde al frente, pero su participación en los combates sirvio para atemorizar a los pilotos de la Luftwaffe. En total del Yak-3 se fabricaron casi 5.000 aparatos

 Yak-9

El biplaza UTI-26/Yak-7V (un Yak-1 modificado) de entrenamiento llevó a la producción del Yak-7A/B. El siguiente y logradísimo Yak-9 fue adaptado para llevar armas contracarro. Sus principales versiones fueron Yak-9T, caza contracarro; Yak-9B, cazabombardero y Yak-9D/M caza de largo alcance.

Características técnicas del Yak-3

Envergadura: 9´20 m
Longitud: 8´49 m
Altura: 2´42 m
Superficie alar: 14´83 m2
Planta motríz: Un motor Klimov VK-105FF-2 de 1.300 cv
Peso en vacío: 2.105 Kg
Peso máximo: 2.660 Kg.
Armamento: 1 cañón ShKAS de 20 mm y dos ametralladoras ShKAS de 12´7 mm
Velocidad: 655 Km/h a 3.100 m
Techo de servicio: 10.700 m
Autonomía: 900 Km

 Yak-3



Características técnicas del Yak-9D/M

Envergadura: 9´74 m
Longitud: 8´55 m
Altura: 3 m
Superficie alar: 10 m2
Planta motríz: Un motor Klimov VK-105FF-3 de 1.041 kW
Peso en vacío: 2.770 Kg
Peso máximo: 3.080 Kg.
Armamento: 1 cañón ShKAS de 20 mm y dos ametralladoras ShKAS de 12´7 mm Velocidad: 602 Km/h
Techo de servicio: 10.600 m
Autonomía: 1.410 Km

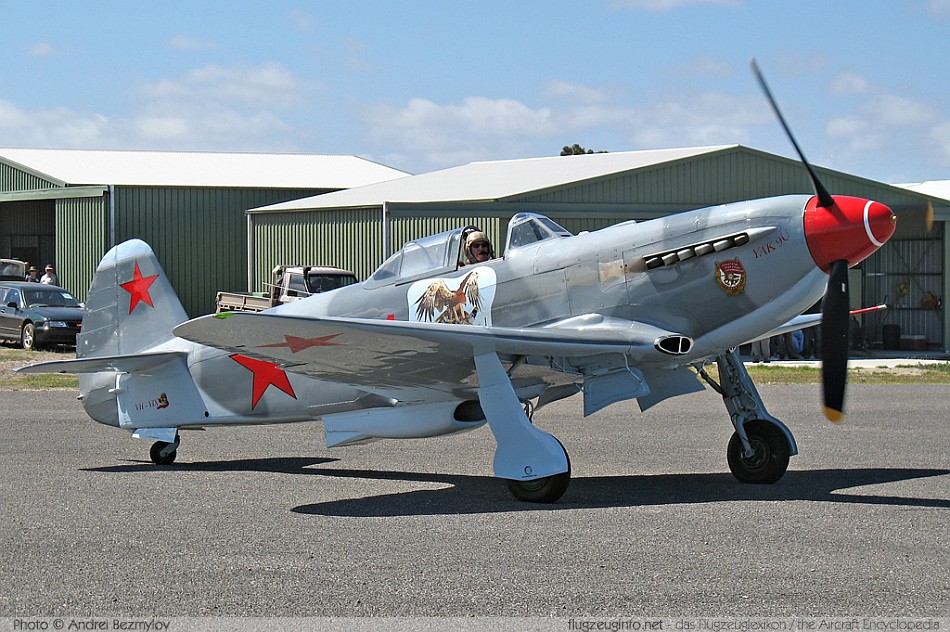

 Yak-9U


Fuentes:
MELLINGER, G. “Yakovlev Aces of World War 2” Osprey, 2005
GORDON, Y. “Yakovlev's Piston-Engined Fighters” Midland Publishing, 2010
